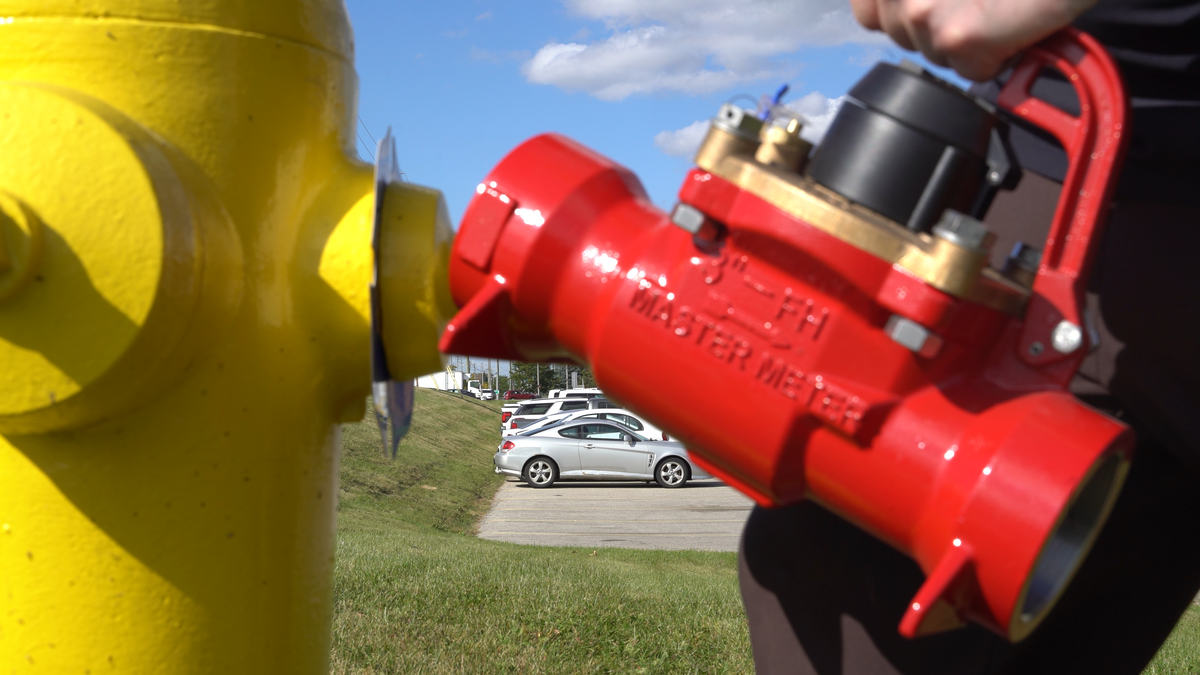

Fire Hydrant Meter

Features & Benefits

• Description: AWWA Class II Turbine Meter.
• AWWA Standard: Meets or exceeds the performance required by AWWA Standard C701, most recent revision, for Class II Turbine Meters.

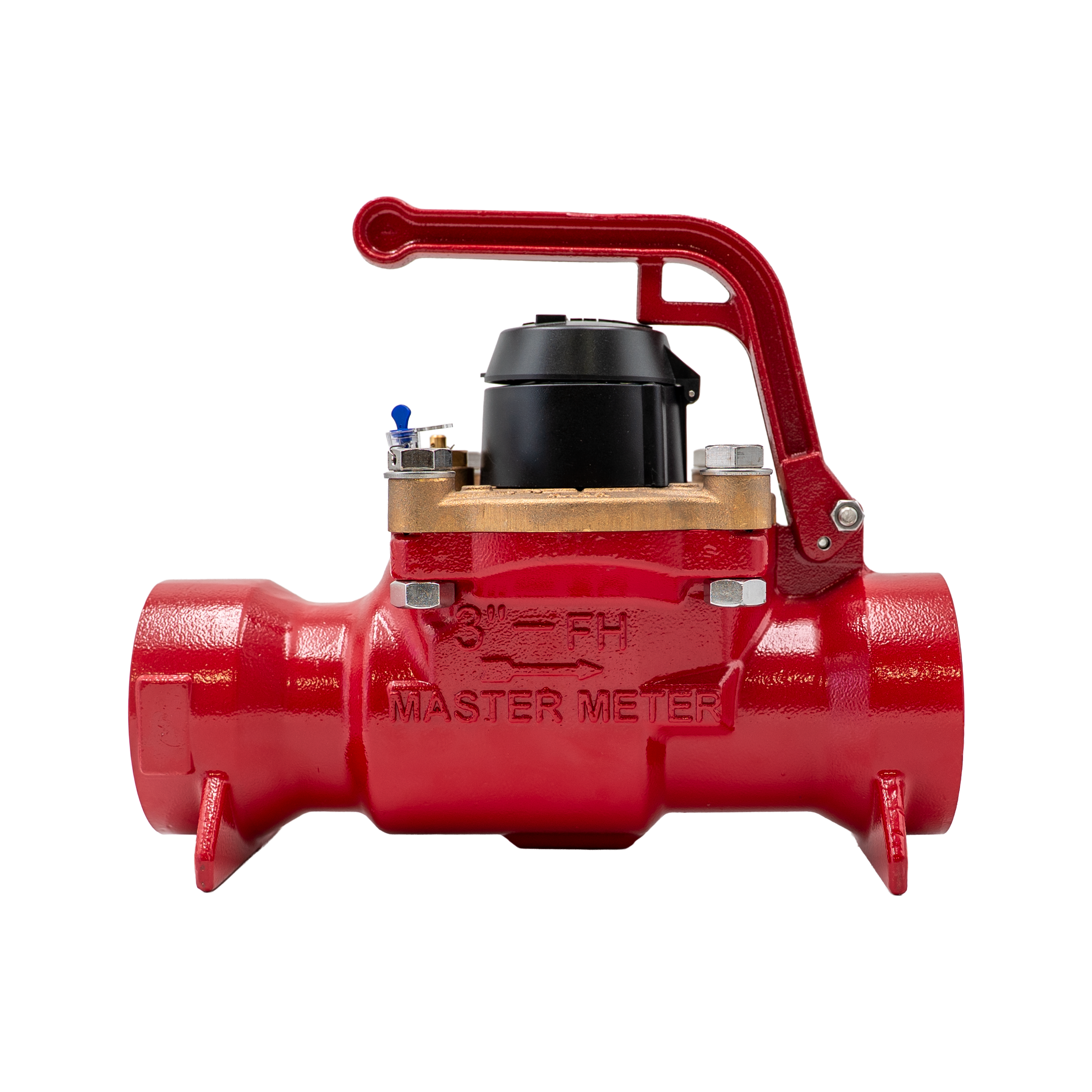

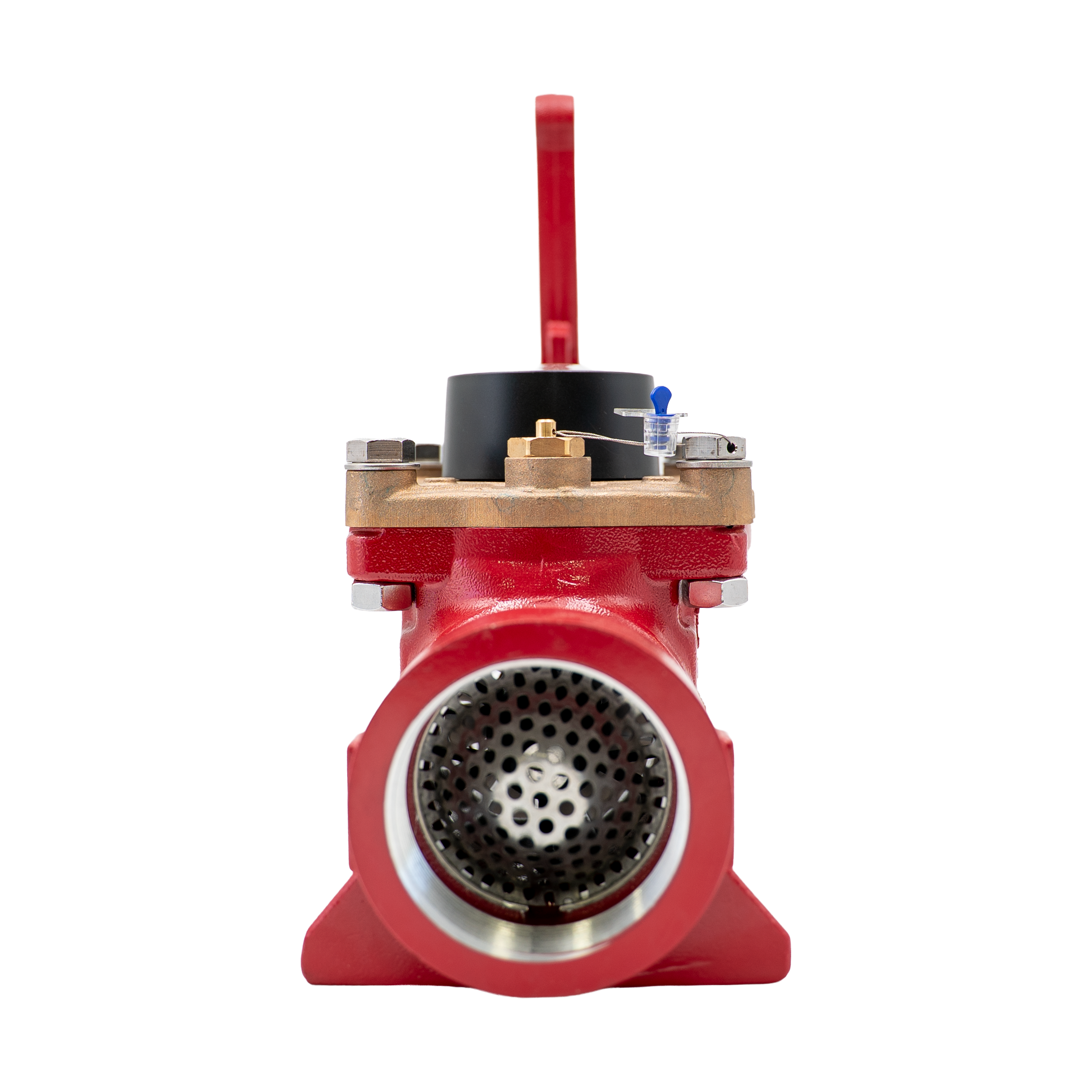

• Main Case: 3” constructed of lightweight aluminum, with lockable handle and stainless steel internal inlet strainer. Equipped with 2.5” male NST swivel inlet coupling and 2.5” male NST outlet coupling. Bronze register retaining ring and lid are standard.
• Measuring Chamber: Meter chamber assembly and turbine are constructed of durable, engineering plastics for extended service life.
• Magnetic Drive: A reliable, direct magnetic drive provides linkage between measurement element and register. No intermediate gearing is required; no gearing is exposed to water.
• Register: Standard direct read. A six wheel odometer is standard. Registrations is available in gallons or cubic feet.
• Register Sealing: Direct ead and DIALOG® System registers are permanently sealed, with a tempered glass lens, stainless steel base and wrap-around gasket to prevent intrusion of dirt or moisture.
• Test Circle: Large center sweep hand with 100 clearly indicated graduations per minimum registration unit, with each tenth marked.
• Low Flow Detector: Center-mounted indicator with high sensitivity resulting from direct one to one linkage to the measuring element.
